Enhanced local bus

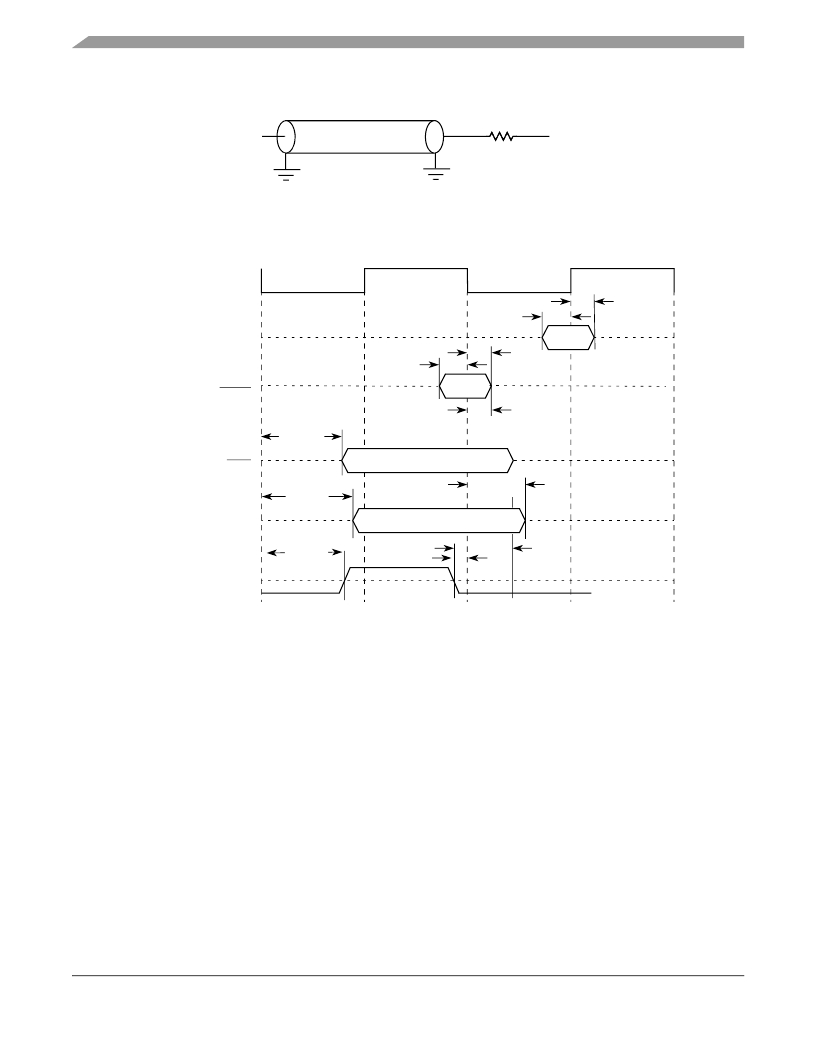

The following figure provides the AC test load for the local bus.
Output
Z 0 = 50 Ω
R L = 50 Ω
OV DD /2
Figure 7. Enhanced local bus ac test load
The following figures show the local bus signals. These figures have been given indicate timing
parameters only and do not reflect actual functional operation of interface.
LCLK[n]
t LBIXKH
t LBIVKH
Input Signals:
LAD[0:15]
t LBIVKH
t LBIXKH
Input Signal:
LGTA
t LBIXKH
t LBKHOV
Output Signals:
LBCTL/LBCKE/LOE
Output Signals:
LAD[0:15]
t LBKHOV
t LBKHOZ
t LALEHOV
t LALETOT
t LBOTOT
LALE
Figure 8. Enhanced local bus signals
MPC8309 PowerQUICC II Pro Integrated Communications Processor Family Hardware Specifications, Rev. 3
20
Freescale Semiconductor
